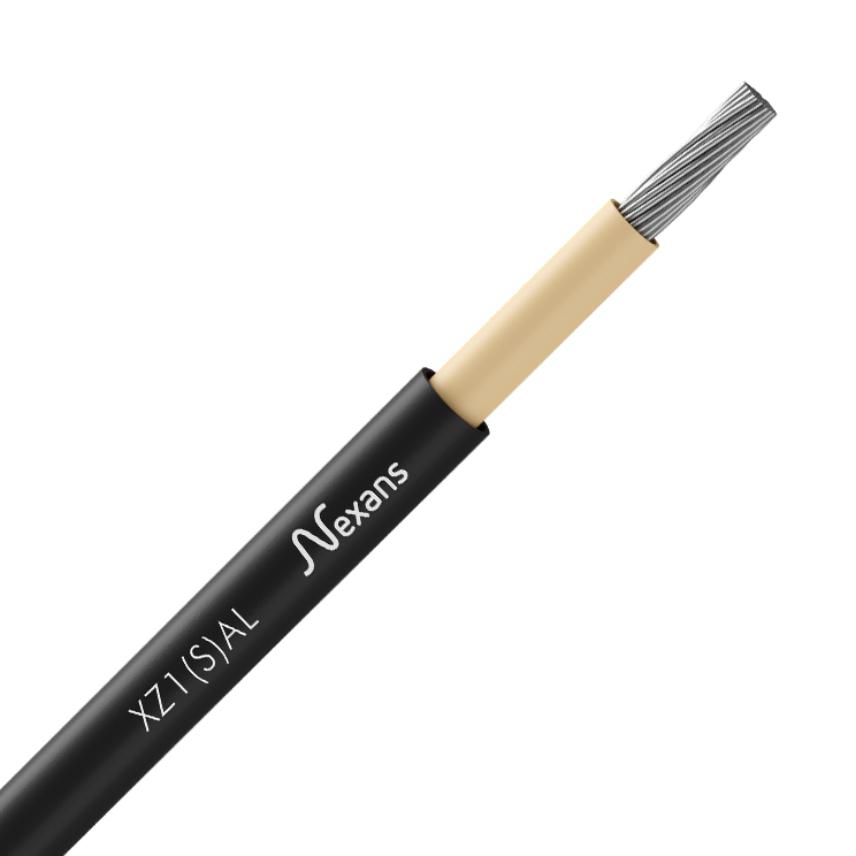

Nexans XZ1 Aluminio (S), 1x95 mm²

Certifications and labels

Environmental data

1.55 t eq. CO₂

Global carbon footprint

≤ 7.3 t eq. CO₂ / t AL

Low carbon aluminium footprint

Nexans XZ1 Aluminio (S), 1x95 mm²

Cabo de alumínio, livre de halogênios, para redes de distribuição.

Descrição

Padrões

Product

Nexans specification

Application

RV aluminium cables can be used in all low voltage power installations.

Safety cable(S) with characteristics of no flame spread, halogen free low acidity and corrosiveness of gases low opacity of smoke emitted during combustion.

Installation and design

These cables can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection.

Core colours

1 core = Black

Características

Construction characteristics

Conductor flexibility

Class 2

Conductor material

Aluminum

Insulation

XLPE (DIX3 type)

Sheath colour

Black

Outer sheath

Polyolefin (DMO1 type)

Conductor shape

Características dimensionais

Conductor diameter

- mm

Diameter over insulation

- mm

Maximum outer diameter

- mm

Nominal outer diameter

- mm

Number of cores

Thickness

- mm

Conductor cross-section

95 mm²

Approximate weight

401 kg/km

Electrical characteristics

Permissible current rating in open air

- A

Permissible current rating when buried

- A

Voltage drop, single phase

- V/A.km

Rated Voltage Uo/U (Um)

0,6/1 kV

Mechanical characteristics

Cable flexibility

Mechanical resistance to impacts

Usage characteristics

Chemical resistance

Good

Max. conductor temperature in service

- °C

Operating temperature, range

- °C

Packaging

Short-circuit max. conductor temperature

- °C

Water proof

Weather resistance

AN3

Flame retardant

IEC 60332-1

Recursos

Documentação

PEP ECOPASSPORT XZ1 AL pdf — 4.4 MB

Download

Informações de venda e entrega

Marking

Nexans - XZ1 (S) 1x

Section(mm²) AL - Year of fabrication - AENOR

Declaração de desempenho

Declaração de desempenho nº : 1001279-MAMO
Data de certificação : 11/07/25
Avaliação e Verificação da Constância do Desempenho) : System 3
Corpo notificado : 1722
Desempenho declarado : E_ca
